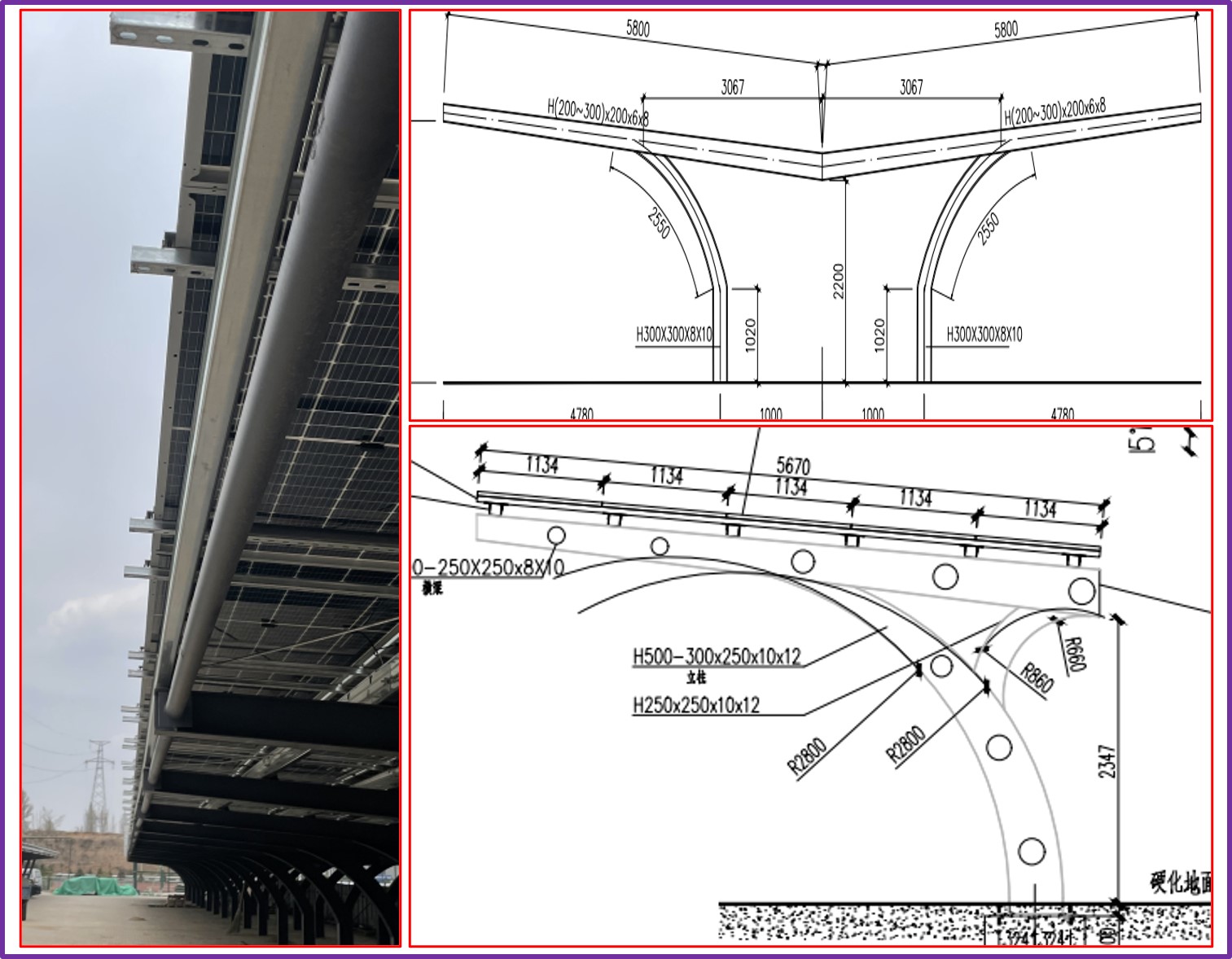

Cleaning plan for solar panels on the roof of the car shed
Photovoltaic panel width: 1. 5800mm; 2. 5670mm
Features of the frame structure:
The edge protrusion cannot be used as a side hanging guide rail;
The photovoltaic panel surface has a slope
Design scheme:
1. The high edge of the photovoltaic panel is supported by a protruding bracket and welded with a 2-inch steel pipe, which serves as a fixed roller table for the long legged insect cleaning equipment;
2. The rolling brush length of the cleaning equipment is 5800mm, and three sets of supporting rollers are designed;
3. The cleaning equipment is hung on one side for easy installation and positioning.

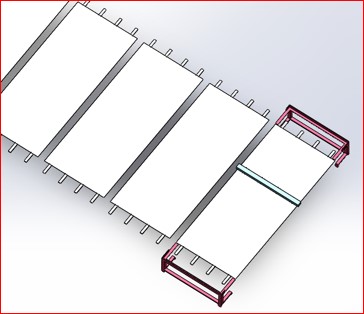

Cleaning plan for solar panels on the roof of the factory building
Site condition 1: Large area plan
Characteristics of frame structure:
1. Located at a raised position on the roof, the outer side of the board is relatively close to the edge of the building;
2. The photovoltaic panel is relatively wide and cannot be cleaned using roller cleaning equipment with walls on both sides;
Design scheme:
1. Add fixed steel wire rope at an interval of 3m as a guide for cleaning equipment and fall protection;
2. The rolling brush equipment uses a non side long legged insect, with a rolling brush length of 3000mm.
Clear plan for solar panels in open spaces
On site condition: Long and narrow plane, small height from the ground, sufficient working space.
Characteristics of frame structure:
1. The height from the ground is small, and the working space is sufficient;
2. The ground is uneven and there is a height difference between each board;
Design scheme:
1. The rolling brush equipment uses a long legged insect with a side wall, with a rolling brush length of 4520mm, spanning a group of photovoltaic panels;
2. Manually lift the long legged insects and transport them between each group of solar panels.
